Professional Manufacturer Mill Finish 2mm Aluminium Alloy Sheet
Price India Alloy coil rolls1050 3105 5052
5052 aluminum coil belongs to the Al-Mg series alloy, which is widely used and is a
promising aluminum alloy. Good corrosion resistance, excellent
weldability, good cold workability, and medium strength. The 5052
alloy aluminum coil has high strength, especially high fatigue
strength, high plasticity and corrosion resistance, good
weldability, poor machinability, and polishing.
5000 Series: Al-Mg alloys
Represents 5052.5005.5083.5A05 series. 5000 series aluminium sheet
belongs to the more commonly used alloy aluminium sheet series,the
main element is magnesium, the magnesium content is between 3-5%.
It can also be called Al-Mg alloy. The main characteristics are low
density, high tensile strength and high elongation.
Applications:
Mainly used in checkered plates, umbrella frames, special materials
for transportation equipment, automobile fuel tanks, lighting,
non-slip flooring, etc.
Specifications:
| Alloy | 5052 |
| Temper | F, O, H111, H12, H14, H16, H18, H22, H24, H26, H28, H32, H34, H36,
H38 |
| Thickness | 0.2-8 mm |
| Width | 100-2650 mm |
| Length | In coil or as your request. |
| Applications | Checkered plate, umbrella frame, special materials for
transportation equipment, etc. |
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |

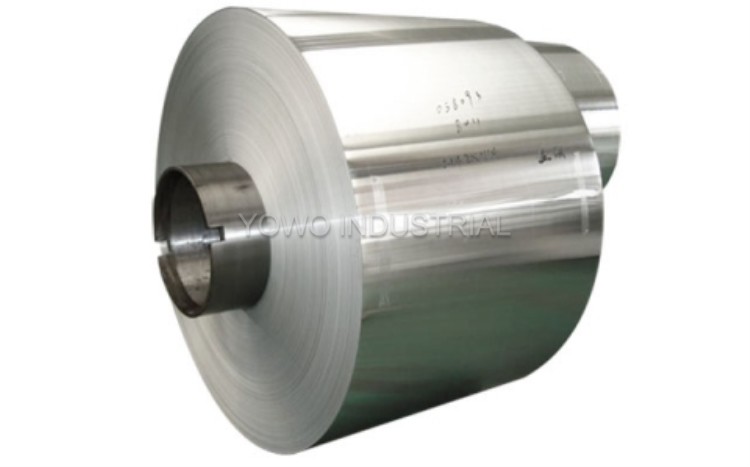

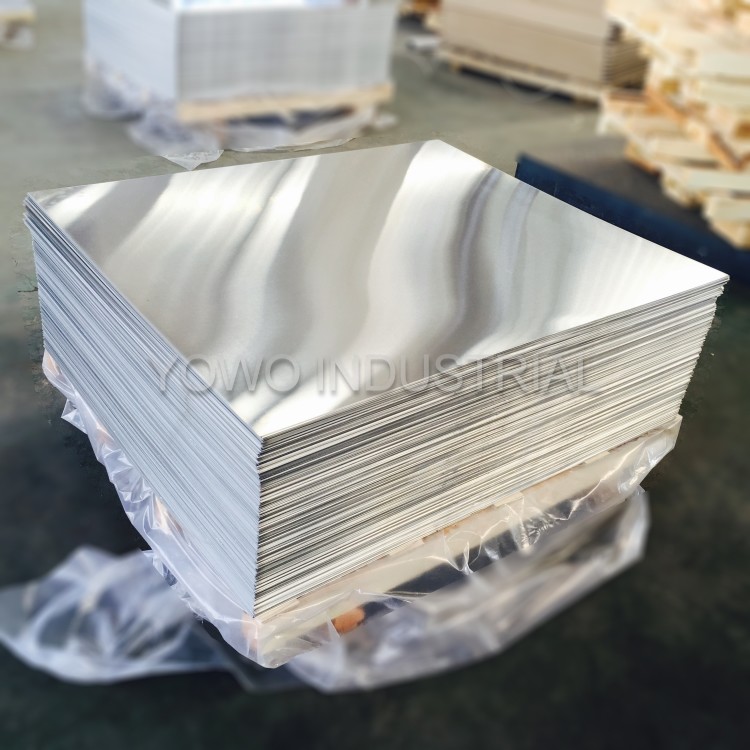

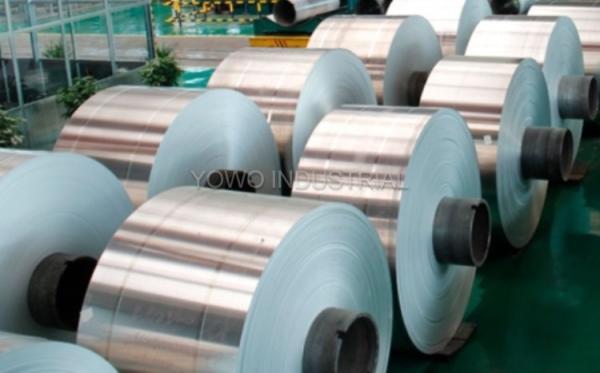

Product Display:
Packaging and Shipping:
1. Package:
Standard seaworthy package. Wooden pallets with plastics protection
for the coil and sheet, or to be packed as your requests.
2. Loading:
Total quantity from 0-50 tons, can be shipped by containers.
More than 50 tons, can be shipped by bulk vessel.
20 ft container: can load width below 2300mm, length 6000 max.
40 ft container: can load width below 2300mm, length below 12000mm.
