Hot Rolled 1500mm Width 2.0mm Aluminium Chequer Plate Sheet

Ask Lasest Price
Brand Name :	YOWO
Model Number :	1060 1100 3003
Certification :	CE, SGS
Price :	USD 1900-3800 per ton
Payment Terms :	L/C, T/T
Supply Ability :	10000 tons per month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

Hot Rolled 1500mm Width 2.0mm Aluminium Chequer Plate Sheet

Hot Rolled Cold Rolled Aluminum Sheet Checkered Plate

Specifications of Aluminum tread plate:

Aluminium Alloy	Thickness (mm)	Width (mm)	Temper
1050,1060,1100	0.2-2.0	800-2000	H14,H16,H24,H26
3003,3004,3105	0.2-2.0	800-2000	H14,H16,H24,H26
Standard Size	Standard thickness:0.3-1.2mm
Surface	Standard width: 914mm/1000/1200/1220mm
	Size can be produced as per clients requirement
Surface	Mill Finish, Flat, Smooth, Stucco Emboss(Orange Peel), Corrugation
Back Lamination	Polykraft Paper, Polysurlyn, Kraft Paper, Craft Paper
Polykraft Thickness	about 0.1mm
Corrugation Type	6x32mm( wave height 6mm ,and wave distance 32mm)
Quality Standard	ASTM B209,EN573-1
MOQ Per Size	1 tons, 500kgs can be accepted for trial order.
Payment Terms	TT, LC, DP at sight
Delivery Time	Within 35 days after receipt LC or deposit
Material Quality	Tension Level, Flat, Free Of Defects Like Oil Stain, Roll Marks, Waves, Dents, Scrath,Etc A+++ Quality
Application	Heat Insulation Moisture Barrier, Oil Field
Packaging	Standard export worthy wooden pallets, and standard packing is about 2 .5tons/pallet or 100 feet one roll
	Coil Id:508mm, eye to wall or eye to sky as per clients requirement
	or 100 feet one roll and each roll packed in one carton box, one 20' container can be loaded about 280 rolls

Chemical Composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS	OTHERS	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1070	0.2	0.25	0.04	0.03	0.03	—	0.04	0.03	0.03	—	99.7
1100	0.95 Si + Fe		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	—	0.25	—	0.05	0.15	Rem.
3005	0.6	0.7	0.3	1.0-1.5	0.20-0.6	0.1	0.25	0.1	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5252	0.08	0.1	0.1	0.1	2.2-2.8	—	0.05	—	0.03	0.1	Rem.
6061	0.40-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem.

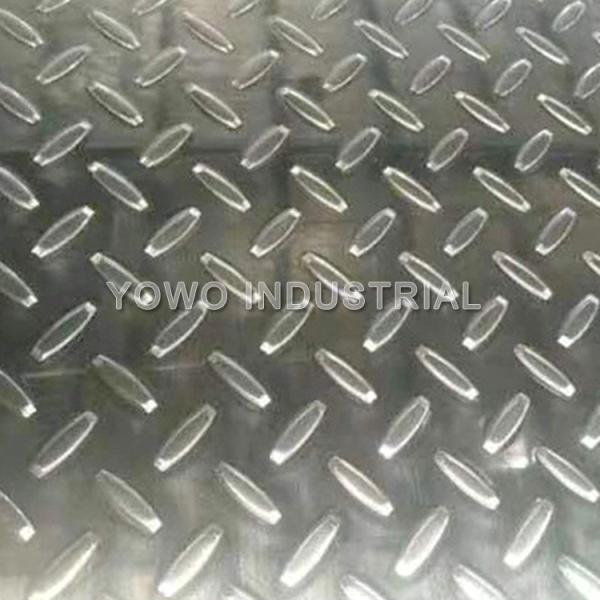

Detailed pictures:
Hot Rolled 1500mm Width 2.0mm Aluminium Chequer Plate Sheet

Hot Rolled 1500mm Width 2.0mm Aluminium Chequer Plate Sheet

Container Loading Capacity
Type	Length	Width	Height	Volume	Max Weight
20FT GP	5.8m	2.13m	2.18m	24-26CBM	25MT
40FT GP	11.8m	2.13m	2.18m	54CBM	25MT
40FT HP	11.8m	2.13m	2.72m	68CBM	26MT
FCL(full container load), LCL(less than container load), or Bulk-cargo.
According to the quantity or volume, you can choose!

Applications
1.Ship deck
2. Autos
3. Workshop floors
4. Building floors and steps
5. Antiskid floor of bus
6. Elevator
7. Tread board
8. Stair tread
9. Vehicle step
