0.4mm 1650mm Width 1060 Aluminum Alloy Strip

Ask Lasest Price
Brand Name :	YOWO
Model Number :	1060, 1050
Certification :	CE, SGS
Price :	USD 2000-2900 per TON
Payment Terms :	L/C, T/T
Supply Ability :	10000 tons per month
Delivery Time :	15-30 days after receiving deposit or Original LC

Add to Cart

Product Details
Company Profile

0.4mm 1650mm Width 1060 Aluminum Alloy Strip

Wholesale Price High Quality Aluminum Strips With Customized Width 20mm--1650mm

Specifications:

Chemical Composition

The alloy composition of 1060 aluminium is

Aluminium: 99.6% min

Copper: 0.05% max

Iron: 0.35% max

Magnesium: 0.03% max

Manganese: 0.03% max

Silicon: 0.25% max

Titanium: 0.03% max

Vanadium: 0.05% max

Type	Aluminum Sheet/Foil/Strip
Grade & Temper	1070/1060/1050/1350 O
Thickness	0.2-2.0mm (other thickness can be produced)
Width	20-1650mm
Inner Diameter	150/300/400/500mm
Conductivity(%IACS)	≥61.5
Reisitivity number(Ω·mm2/m)	≤0.02825
Elongation(%)	>23
Tensile Strength(Mpa)	>76
Density in 20℃	2.7g/cm3

Tolerance:

Aluminum Alloy	1070/1060/1050 O
Thickness(mm)	0.2-0.3	0.4-0.8	1.0-2.0	2.0-3.0
Tolerance(mm)	±0.015	±0.02	±0.03	±0.06
Width(mm)	20-400	100-600	200-700	500-1600
Width Tolerance(mm)	±0.2	±0.3	±0.3	±1

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

Mechanical Property
ALUMINUM	Grade	Normal	Temper	Tensile Strength	Yield Strength	Elongation%		Brinell Hardness
ALLOY	Grade	Temper	Temper	N/mm²	N/mm²	Plate	Bar	HB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
(2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn	3003		O	110	40	30	37	28
(3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg	5052	O,H112,H	H34	260	215	10	12	68
(5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si	6061	O,T4,T6,T8	T6	310	275	12	15	95
(6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg	7003	T5	T5	315	255	15	-	85
(7XXX)	7075	O,T6	T6	570	505	11	9	150

Why Choose us?

We have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

0.4mm 1650mm Width 1060 Aluminum Alloy Strip

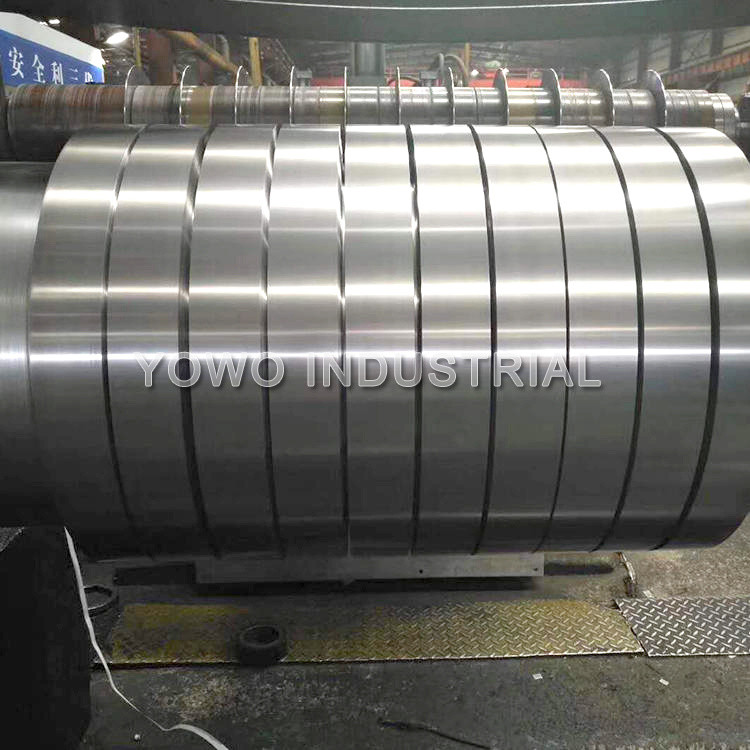

Product Display:

0.4mm 1650mm Width 1060 Aluminum Alloy Strip
