1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

Ask Lasest Price
Brand Name :	YOWO
Model Number :	1050
Certification :	CE, SGS
Price :	USD 2000-2900 per TON
Payment Terms :	L/C, T/T
Supply Ability :	10000 tons per month
Delivery Time :	15-30 days after receiving deposit or Original LC

Add to Cart

Product Details
Company Profile

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1050 HO Aluminum Foil Aluminum Strip For Transformer Without Bur And Scratch

Specifications:

Product name	Aluminum strip
Alloy / Grade	1000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 series
Temper	0-H112, T3-T8, T351-T851
Thickness	0.13-6.5mm
Width	3-2600mm
Length	As per your requirements
Applications	Industry, decorations, building, packing, pressing etc..
Surface treatment	Mill finish, coated, powder coated, anodized, polished mirror, embossed etc..
Tolerances	As per your requirements
Delivery time	7-30 days after receiving deposit or Original LC.
MOQ	500kgs
Loading port	Shanghai port, Qingdao port
Coil ID	As per your requirements.
Prices terms	FOB, CIF, CFR(CNF), EXW etc.
Payment terms	LC, TT, West Union etc.

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS	OTHERS	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1070	0.2	0.25	0.04	0.03	0.03	—	0.04	0.03	0.03	—	99.7
1100	0.95 Si + Fe		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	—	0.25	—	0.05	0.15	Rem.
3005	0.6	0.7	0.3	1.0-1.5	0.20-0.6	0.1	0.25	0.1	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5252	0.08	0.1	0.1	0.1	2.2-2.8	—	0.05	—	0.03	0.1	Rem.
6061	0.40-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem.

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

We(Henan YOWO Industrial) have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

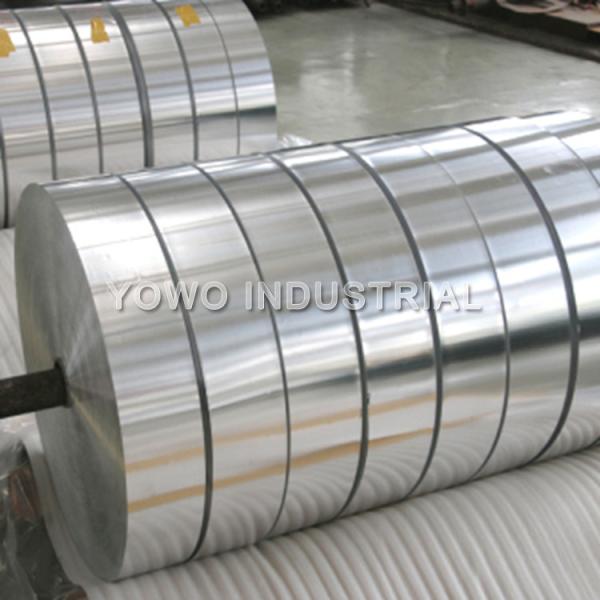

Detailed pictures display:

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer
