Cheap Aluminum Sheet 8mm Thickness With Fast Delivery Time
Specifications:
| Type | Aluminum Sheet/Foil/Strip |
| Grade & Temper | 1070/1060/1050/1350 O |
| Thickness | 0.2-2.0mm (other thickness can be produced) |
| Width | 20-1650mm |
| Inner Diameter | 150/300/400/500mm |
| Conductivity(%IACS) | ≥61.5 |
| Reisitivity number(Ω·mm2/m) | ≤0.02825 |
| Elongation(%) | >23 |
| Tensile Strength(Mpa) | >76 |
| Density in 20℃ | 2.7g/cm3 |
| Aluminum Alloy | 1070/1060/1050 O |
| Thickness(mm) | 0.2-0.3 | 0.4-0.8 | 1.0-2.0 | 2.0-3.0 |
| Tolerance(mm) | ±0.015 | ±0.02 | ±0.03 | ±0.06 |
| Width(mm) | 20-400 | 100-600 | 200-700 | 500-1600 |
| Width Tolerance(mm) | ±0.2 | ±0.3 | ±0.3 | ±1 |
Chemical composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |
Mechanical Property:
| Mechanical Property |
| ALUMINUM | Grade | Normal | Temper | Tensile Strength | Yield Strength | Elongation% | Brinell Hardness |
| ALLOY | Temper | N/mm² | N/mm² | Plate | Bar | HB |
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 |
| Al-Cu | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| (2XXX) | 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
| Al-Mn | 3003 | | O | 110 | 40 | 30 | 37 | 28 |
| (3XXX) | 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| (5XXX) | 5083 | O,H112,H | O | 290 | 145 | - | 20 | - |
| Al-Mg-Si | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| (6XXX) | 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
| Al-Zn-Mg | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| (7XXX) | 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 |

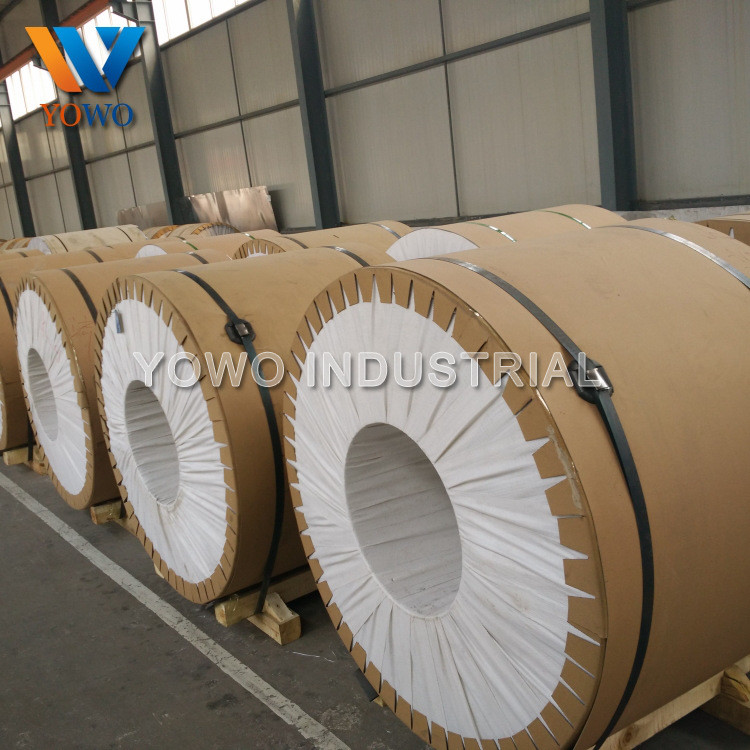

Packaging:
Standard seaworthy package. Wooden pallets with plastics protection
for the coil and sheet, or to be packed as your requests.
Loading:
Total quantity from 0-50 tons, can be shipped by containers.
More than 50 tons, can be shipped by bulk vessel.
20 ft container: can load width below 2300mm, length 6000 max.
40 ft container: can load width below 2300mm, length below 12000mm
Typical use of 1000 series aluminum sheet coil
1050 is widely used in daily necessities, lighting appliances,
reflectors, decorations, chemical industry containers, heat sinks,
signs, electronics, lamps, nameplates, electrical appliances,
stamping parts and other products.
It is used in some occasions that require high corrosion resistance
and formability, but does not require high strength. Chemical
equipment is its typical use.
1060 is widely used in products that do not require high strength.
Products are commonly used in signboards, billboards, building
exterior decoration, bus body, high-rise and factory wall
decoration, kitchen sinks, lamp holders, fan blades, electronic
parts, chemical instruments, sheet metal processing parts, deep
drawing or spinning concave Shaped utensils, welding parts, heat
exchangers, clock surfaces and plates, nameplates, kitchen
utensils, decorations, reflective appliances, etc.
1100 is usually used for parts that require good forming and
processing performance, high corrosion resistance, and do not need
high strength, such as food and chemical handling and storage
equipment, sheet metal products, hollow hardware processed by
drawing cargo spinning, and welding combination keys , Reflectors,
nameplates, etc.
Applications:
